Pharmaceutical Cleanroom Light Curtain Contamination-Resistant Aluminum Body Surgical-Grade Response

Nombre De La Marca:	JUTAI
Número De Modelo:	CG15-8L
MOQ:	Support 1-10 pcs for testing
Precio:	Negociable
Detalles Del Embalaje:	1 set 1 cartoon. 8 set 1 big cartoon
Condiciones De Pago:	T/T, Western Union

Información detallada

Descripción de producto

Información detallada

Place of Origin:

Shenzhen China

Certificación:

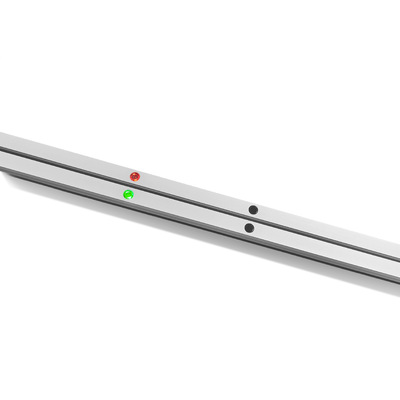

LED Status:

Transmitter: Green light always on (normal) ；Receiver: Red light (object obstruction), green light (unobstructed, power supply), red light flashing (first power on)

Working Voltage:

12 - 30VADC

Output:

Transmitter: - ；Receiver: NO, NC, COM

Working Current:

64mA@DC12V / 44mA@DC24V / 34mA@DC30V

Output Load:

Maximum switching current: 1A, maximum switching voltage: 125V@AC, 60V@DC

Angle:

Transmitter: ±15° ；Receiver: ±65°

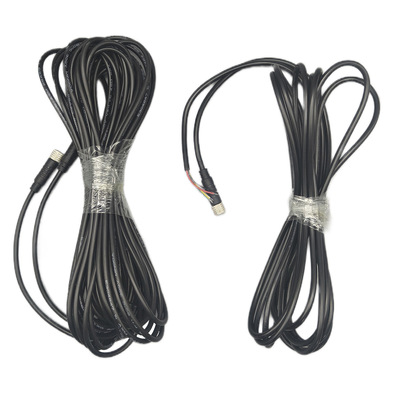

Cable Length:

Transmitter Size 12m Receiver Size 4 m

Number of Optical Eyes:

Light Eye Distance:

175 mm

Wavelength:

950nm

Detection Distance:

12m (Indoor/Outdoor)

Response Speed:

23 ms

Closest Installation Distance:

50 cm

Cable Specifications:

AWG26

Shell Material:

Natural alumina

Protection Grade:

Operation Temperature:

-40°C ~ +70°C

Supply Ability:

1000 set per month

Resaltar:

cleanroom light curtain contamination-resistant

surgical-grade light curtain aluminum body

pharmaceutical cleanroom light curtain response

Descripción de producto

Pharmaceutical Cleanroom Light Curtain Contamination-Resistant Aluminum Body Surgical-Grade Response

The Invisible Shield in Your Sterile Sanctum

Where a Single Particle is the Enemy
In the heart of your pharmaceutical cleanroom – where ISO-classified air hums and gloved hands maneuver sterile vials – conventional sensors become contamination risks. Our Light Curtain defies this paradox. Crafted with a contamination-resistant aluminum body, it repels disinfectant sprays, corrosive vapors, and abrasive wipe-downs that degrade plastic housings. When rapid-transfer hatches snap open or gowning-room doors glide shut, its surgical-grade response acts with scalpel-like precision: halting doors instantly before a stray sleeve breaches the airflow curtain or a dropped vial enters the crush zone. No false alarms from floating fibers or air-jet turbulence. No particle-shedding seams. Just absolute immunity in your most critical control points – where safety meets sterility, unconditionally.

️Precision as Relentless as Your Protocols

Guardian of Integrity at the Threshold
Imagine a safety system as uncompromising as your QA team. Where regulatory audits scrutinize every variable, our Light Curtain delivers fail-secure vigilance. Its aluminum armor withstands autoclave-adjacent heat and pH-shift cleaning cycles that melt lesser sensors. The surgical detection algorithms distinguish between a floating glove and a pallet shadow – eliminating production-halting false stops during vial-filling or lyophilizer loading. For validation engineers, it’s documentation peace: seamless compliance with FDA 21 CFR Part 11 data integrity demands. For facilities teams, it’s crisis prevention: no particulate shedding to risk batch contamination, no corrosive pitting to necessitate requalification. This is how you protect more than people – you shield product purity, door mechanisms from emergency-jolt damage, and your brand’s sacred trust.

Pharmaceutical Cleanroom Light Curtain Contamination-Resistant Aluminum Body Surgical-Grade Response 0

Product Size

Pharmaceutical Cleanroom Light Curtain Contamination-Resistant Aluminum Body Surgical-Grade Response 1

Wiring

Pharmaceutical Cleanroom Light Curtain Contamination-Resistant Aluminum Body Surgical-Grade Response 2

Production

Pharmaceutical Cleanroom Light Curtain Contamination-Resistant Aluminum Body Surgical-Grade Response 3

Pharmaceutical Cleanroom Light Curtain Contamination-Resistant Aluminum Body Surgical-Grade Response 6

Product Series

CG15-8L	CL05-10L	CL10-8L	CL10-16L	CL15-8L

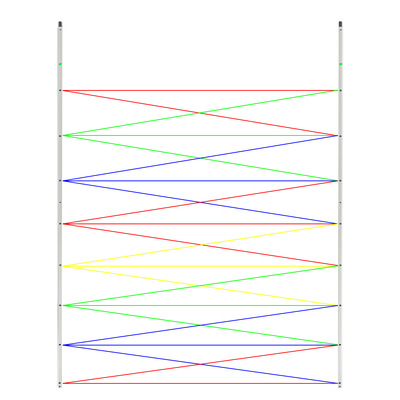

1.5 m 8 Infrared Beam Cross Beam Version	0.5 m 16 Infrared Beam Parallel Beam Version	1 m 8 Infrared Beam Parallel Beam Version	1 m 16 Infrared Beam Parallel Beam Version	1.5 m 8 Infrared Beam Parallel Beam Version
CL15-16L	CL20-8L	CL20-16L	CL25-8L	CL25-16L
1.5 m 16 Infrared Beam Parallel Beam Version	2 m 8 Infrared Beam Parallel Beam Version	2 m 16 Infrared Beam Parallel Beam Version	2.5 m 8 Infrared Beam Parallel Beam Version	2.5 m 16 Infrared Beam Parallel Beam Version
